LDH400 Series

Electronic DC Load, 500V, 16A, 400W

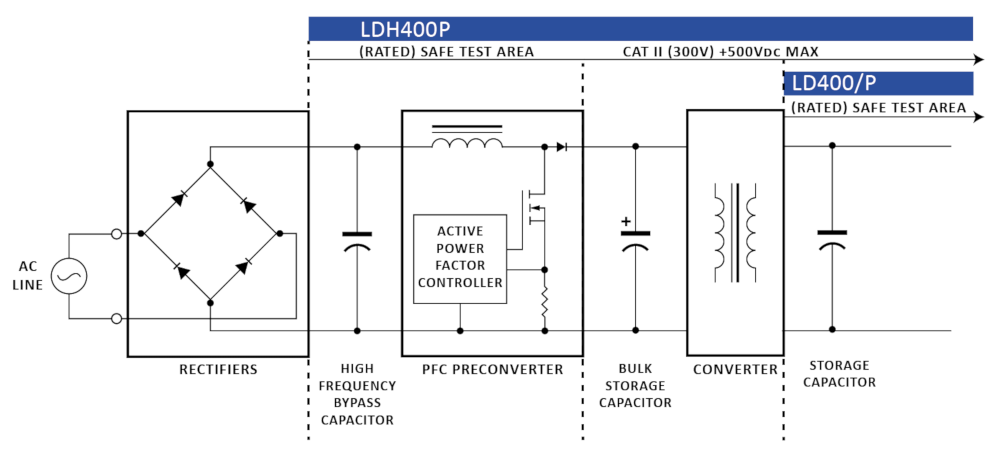

  • Versatile solution for direct testing of dc power sources and PFCs
  • Constant current, resistance, conductance and power modes
  • Wide voltage and current range, 10 to 500V and 0 to 16A
  • 400 watts continuous dissipation at 28°C (360W at 40°C)
  • High resolution and accuracy for level setting
  • Built-in transient generator with variable slew
  • Current monitor output for waveform viewing
  • Variable drop-out voltage for battery testing
  • High resolution backlit graphic LCD with soft key control
  • Analogue remote control of levels and TTL control of on/off and transient switching
  • Front and rear input terminals
  • Load inputs rated to CAT II (300V)
  • Full bus control via USB, RS232 and LXI compliant LAN interfaces

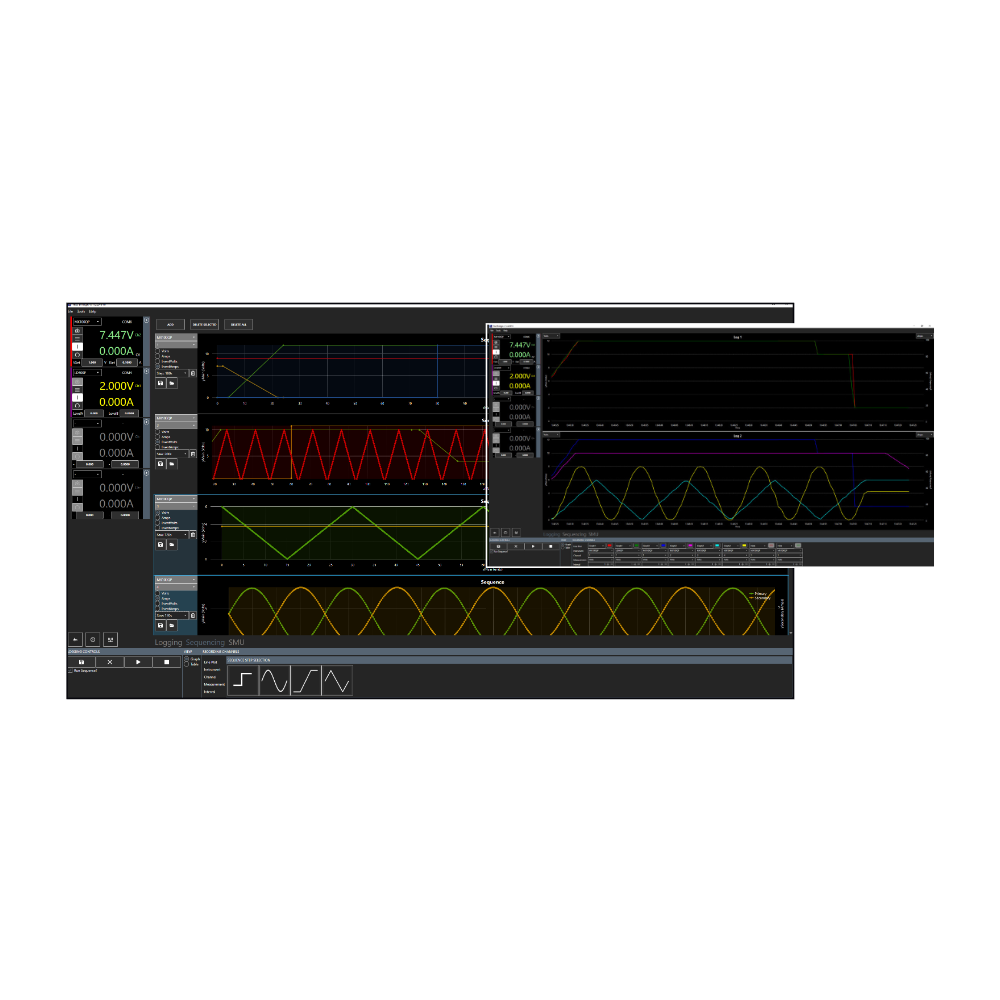

  • Test Bridge software available (free download)
  • GPIB Option
Datasheet - (PDF / English)

See Also

Aim-TTi LD400 DC Electronic Load
LD400 Series
 Electronic DC Load, 80V, 80A, 400W

Product Tabs

Model Price
Aim-TTi LDH400P Electronic Load

LDH400P

Electronic DC Load, 500V, 16A, 400W with analogue and digital control, USB, RS232 and LAN/LXI
1 822,00 â‚¬
Model Price
GPIB 1A
GPIB Interface Kit
148,00 â‚¬
Model Price
RM460
4U Rack Mount for CPX, MX, QPX and PL/PLH Series 3U PSUs.
214,00 â‚¬

Firmware Files
LDH400P firmware files V1.05/V1.06 - (HEX / English)

Drivers
LD400P and LDH400P combined IVI-COM, IVI-C and LabVIEW driver - 32 bit - (ZIP / English)
LD400P and LDH400P combined IVI-COM, IVI-C and LabVIEW driver - 64 bit - (ZIP / English)

Datasheets
LD400 and LDH400 Electronic DC loads Data Sheet EN Issue 5 - (PDF / English)

Manuals
LDH400P Bedienungsanleitung auf Deutsch - Issue 3 - (PDF / German)
LDH400P Instrucciones en Espanol - Issue 3 - (PDF / Spanish)
LDH400P Instruction Manual - Issue 3 - (PDF / English)
LDH400P Instructions en Francais - Issue 3 - (PDF / French)
LDH400P Istruzioni in Italiano - Issue 3 - (PDF / Italian)

Software / Apps
Test Bridge Software - (ZIP / English)
