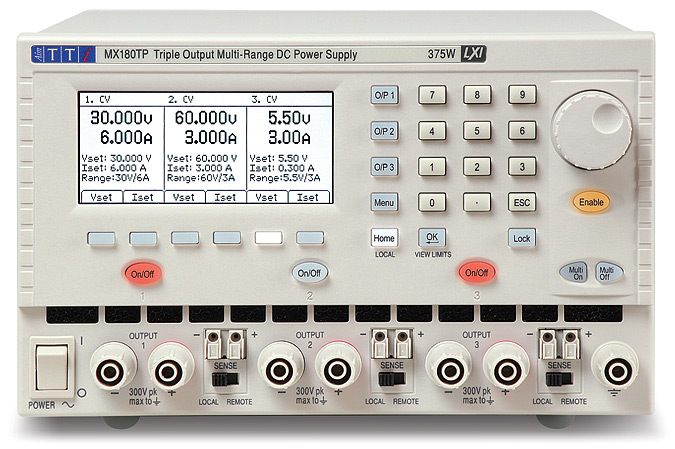

expands the tour into its own window (only visible when embedded in another page.)MX180T and MX180TP triple output laboratory power supplies
- Three high performance outputs, two of 180 watts each and one of 18 watts
- Total power of 378 watts in a compact package
- Range switching gives up to 120 volts and up to 20 amps
- Twenty one range combinations for maximum flexibility
- Up to 360 watts from a single output
- Low output noise and ripple via linear final regulation
- High setting resolution of 1mV and 1mA
- Variable OVP and OCP trips on all outputs
- 50 setting memories per output + 50 linked memories
- Selectable voltage tracking (isolated tracking)
- Selectable current meter averaging
- Switchable remote sense on all outputs
- Graphic LCD provides simultaneous output metering
- Numeric or spin-wheel control of all parameters
- Individual or combined output on/off control with programmable delay sequencing.
- Front panel locking with optional pass-code protection
- 3U half-rack case for bench or rack mounting
- RS-232, USB, LAN (LXI) and optional GPIB interfaces (MX180TP)
The MX180T has two outputs each capable of 0
to 30V at 0 to 6A, plus a third output of 0 to 5.5V at 0 to 3A.
Each output features simultaneous high resolution metering, switchable remote sense, and an individual output switch.
Excellent line and load regulation is matched by low noise and good transient response.
To increase its ability to match a variety of applications, each
output has more than one range.
Outputs one and two can provide either 60V/3A or 15V/10A as an alternative to 30V/6A, while output three can provide 12V/1.5A.
When higher power is required, outputs one and two can be combined internally to provide up to 360 watts as either 30V/12A, 15V/20A, 60V/6A or 120V/3A from a single output.
The MX180TP incorporates USB, RS232 and LXI compliant LAN
interfaces with GPIB available as an option.
These provide full remote control and read-back capabilities and are supported by an IVI driver for high level language applications.
Duplicate power and sense terminals are incorporated at the rear.
The compact half-rack 3U size uses front input ventilation which enables vertical and horizontal stacking without the need for additional ventilation space.
A 3U rack mount suitable for one or two units is available.
Each output features simultaneous high resolution metering, switchable remote sense, and an individual output switch.
Mixed-mode regulation
To provide its impressive power density the MX series combines high frequency switch-mode pre-regulation with linear post-regulation to offer performance that comes close to that of an all-linear design.Excellent line and load regulation is matched by low noise and good transient response.

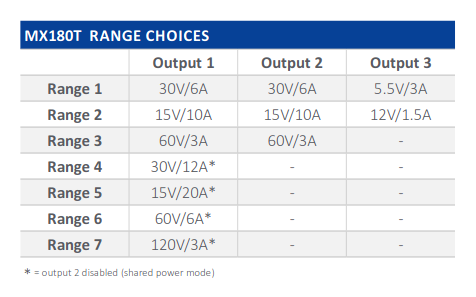

Range switching and power control
To increase its ability to match a variety of applications, each
output has more than one range.
Outputs one and two can provide either 60V/3A or 15V/10A as an alternative to 30V/6A, while output three can provide 12V/1.5A.
When higher power is required, outputs one and two can be combined internally to provide up to 360 watts as either 30V/12A, 15V/20A, 60V/6A or 120V/3A from a single output.
Remote control for system applications
The MX180TP incorporates USB, RS232 and LXI compliant LAN
interfaces with GPIB available as an option.
These provide full remote control and read-back capabilities and are supported by an IVI driver for high level language applications.
Duplicate power and sense terminals are incorporated at the rear.
The compact half-rack 3U size uses front input ventilation which enables vertical and horizontal stacking without the need for additional ventilation space.
A 3U rack mount suitable for one or two units is available.
