FX Series DC Supplies - Numeric Entry and Rotary Control

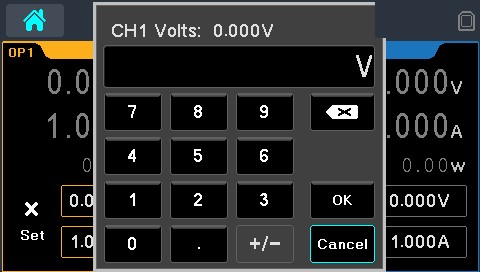

Direct numeric entry
Settings can be made by direct numeric entry
using the on screen keypad.
Each new setting is previewed on the display
and is confirmed with the OK key before being actioned.

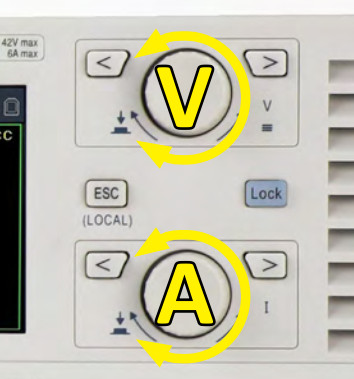

Dual rotary control
The FX series has two rotary encoders; the top one is used for both general menu use and
for setting voltage on the selected output.
The second controller is used for adjusting current settings
