EL-R Series: Linear Regulated Precision DC Bench Power Supplies
Precision with Simplicity
The EL-R series offers higher precision whilst retaining the simplicity of operation
which many bench-top power supply users prefer, adding four-digit meters and switchable remote sensing,
Eight models are offered including single, dual and triple
outputs and covering a power range of 30 watts up to 130 watts.
Models
Model
Output 1
Output 2
Output 3
Power
EL301R
30V/1A
30W
EL183R
18V/3.3A
60W
EL302R
30V/2A
60W
EL561R
56V/1.1A
60W

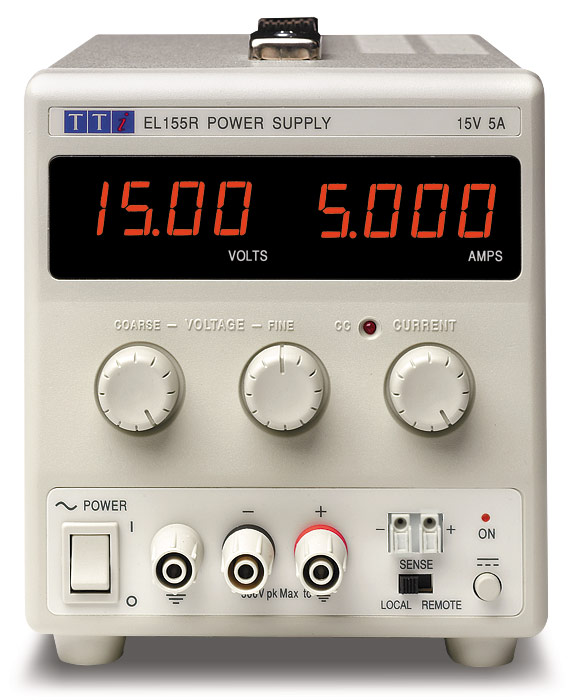

EL155R
15V/5A
75W
EL303R
30V/3A
90W
EL302RD
30V/2A
30V/2A
120W

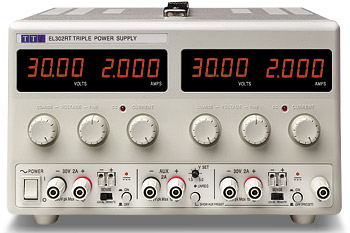

EL302RT
30V/2A
30V/2A
1.5 - 5V/2A
130W
Features
Specs EL-R series specifications
Regulation Find out more about EL-R linear output regulation
Metering Find out more about EL-R series metering
Outputs Find out more about the outputs and controls
