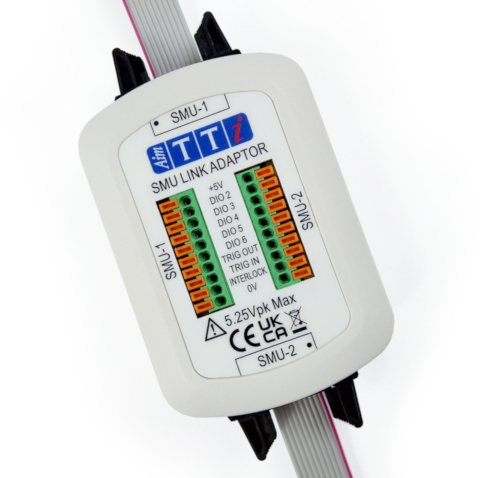

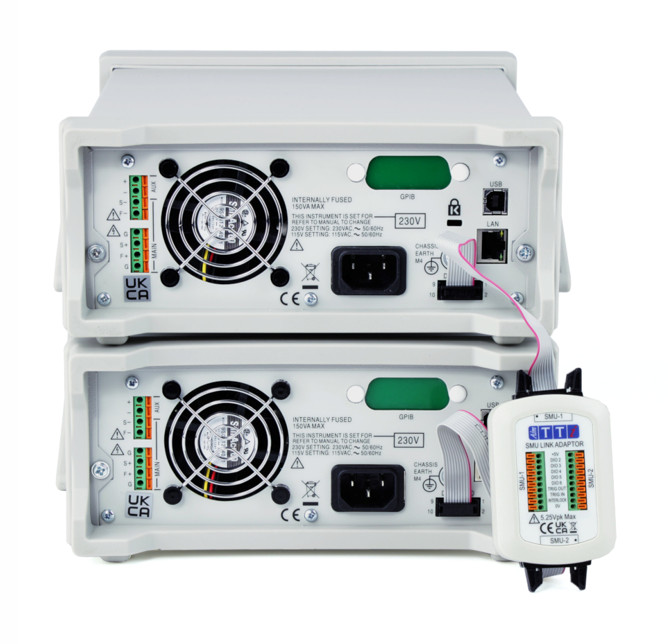

The SMU Link adapter is an optional accessory that can be used to connect
two SMU4000 Series units together to perform simultaneously via a
handshake triggering system, creating a fully functioning 2 channel
SMU for testing three leaded components such as BJTs, FETs or more.
It additionally provides push terminal connectors to access the data lines, triggers and interlocks and for this purpose is useful even if you only have a single SMU4000 series.
The SMU-Link adapter also provides access to the +5V and 0V lines for powering external control circuitry. The 5V supply is fused inside the SMU4000 with a 500mA resettable fuse.
