Test Bridge SMU software

Test Bridge SMU Software

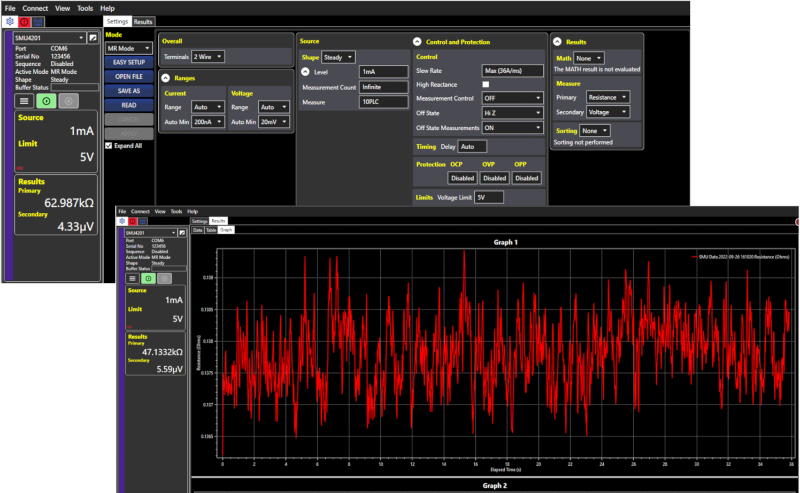

The Test Bridge SMU Windows Software provides a graphical interface which allows direct control of the SMU4000 Series hardware, including advanced setups, creation and uploading of lists and sequences, downloading and viewing of tabular or graphical data.

Advanced graphing features provide an array of options, some specific to SMU usage such as being able to compare result sets split by step and repeat number for sequenced data.

Test Bridge SMU software controls the hardware over the USB or LAN connection (not GPIB)

Digital Remote Control

The SMU4000 Series comes fitted as standard with USB and LAN/LXI interfaces and GPIB is available as an option. The USB 2.0 connection operates as a virtual COM port while the LAN interface conforms to LXI 1.5 Device specifications, 2016. All the interfaces support control by a standard SCPI command set.

There is additionally a Digital IO port on the rear panel with 5 user definable signal pins, global trigger in and out and a +5V/500mA DC supply for external low power peripherals. The SMU4201 also has an HV interlock pin for controlling whether the instrument can source voltages above 42V.
