SMU4000 Series Tour Map

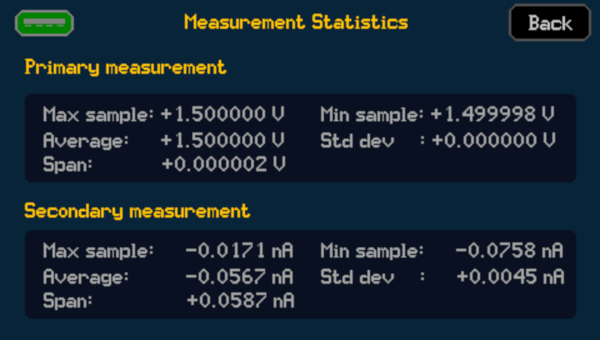

SMU4000 measurement statistics
The measurement statistics screen provides information based on the primary
and secondary measurement data from the sample table.
- Minimum Sample Value
- Maximum Sample Value
- Measurement Span (min to max value)
- Arithmetic mean (average)
- Standard Deviation
This is updated live as new data is recorded and is available at any time.
